Road Barrier Blow Molding Machine

road barrier blow molding machine

Road barrier blow molding machine used to produce different size road barrier because the standard of every country is different, so the YanKang company can use private customized methods according to customers’ different design requirements.

Adopt new integrated multi-layer die head design from one layer to six layers, support for productions of pallets and road barriers at the same time.

Road Barrier Daily Output:260-400PC
Delivery Date:2-3 Month

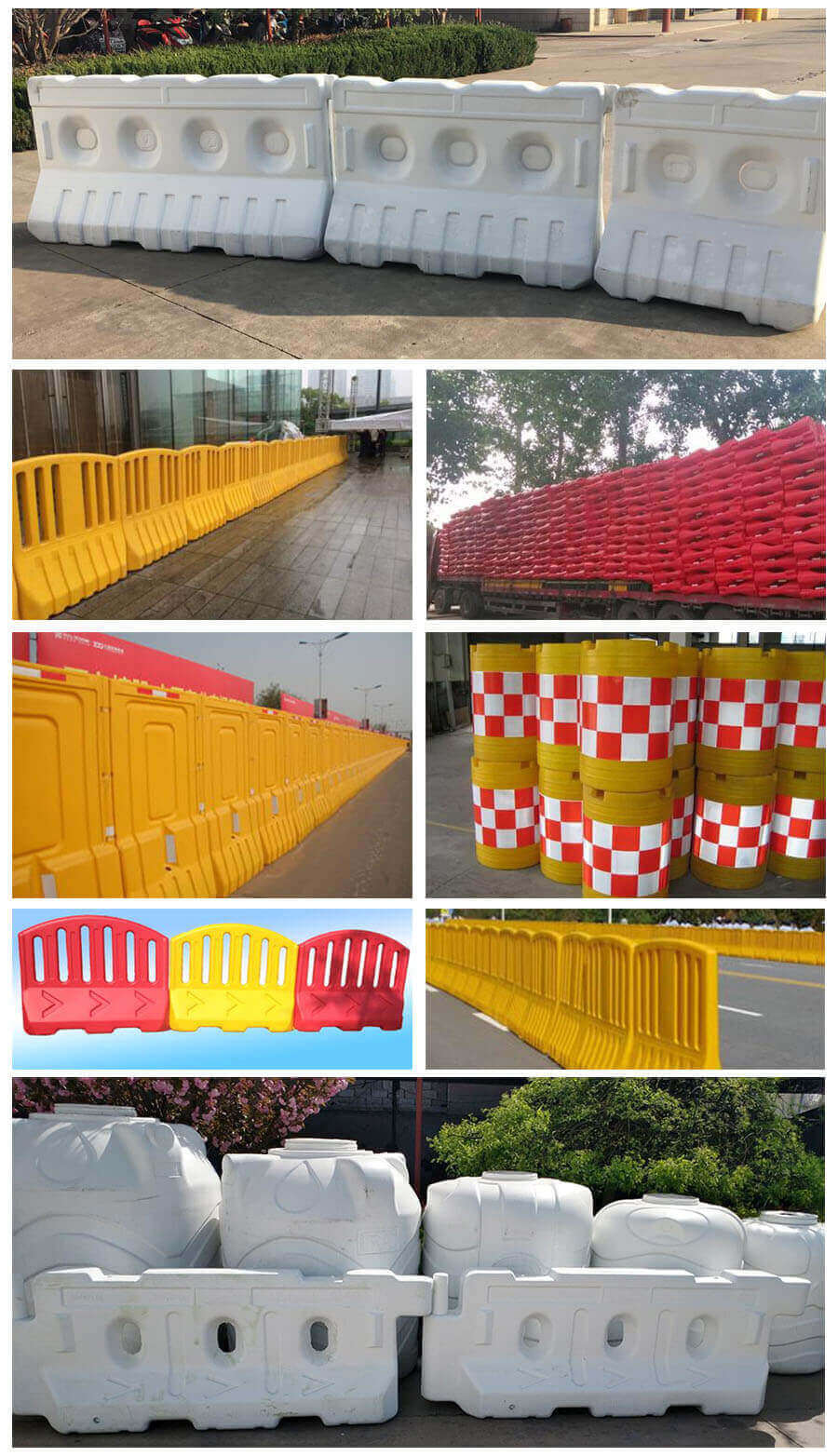

Applications of Road Barrier Water Tank Blow Molding Machine

Traffic barriers are often used for emergency exits at highway exits, as well as road intersections, toll booths, highways, railways, parking lots, stations, docks, shopping malls, assembly points, and other places for road isolation, regional isolation, diversion, guidance, and other purposes.

With the reflective film, the indication at night is clearer and has a clear warning effect on the driver. Can reduce the degree of casualties of people and vehicles in the accident, forming safer protection. Effectively reduce traffic accidents and vehicle losses.

road-barrier

Technical Parameter of Road Barrier Blow Molding Machine

Road Barrier Blow Molding Machine
Specifications Single Layer
Extruders Screw Diameter 110mm
Motor 55kw
Plasticizing Capacity 350 kg/h
L/D L/D 32:1
Max Screw Speed 60 RPM
Die Head Accumulator capacity 45L
Heating Load 45kw
Max. parison weight 33kg
Clamping Unit Clamping Platen Size 2600mm
Max Mould Size 1600x1900mm
Clamping Force 800KN
Hydraulic System Hydraulic Drive Motor (Main) 42kw
Hydraulic Drive Motor (Parison Control) 7.5kw
Oil Tank Capacity 1000L
Machine Weight 28 Ton
Dimension L x W x H 11mx4.5mx6.2m
Total Power 260kw
Average Power Consumption 85kw

Configuration of Road Barrier Blow Molding Machine

①Leading International Technology

For example:

Use original SIEMENS control systems. Guarantee high quality, safe and stable operation. At the same time, it provides after-sales international services.

For more advanced configurations, please refer to the following figure.

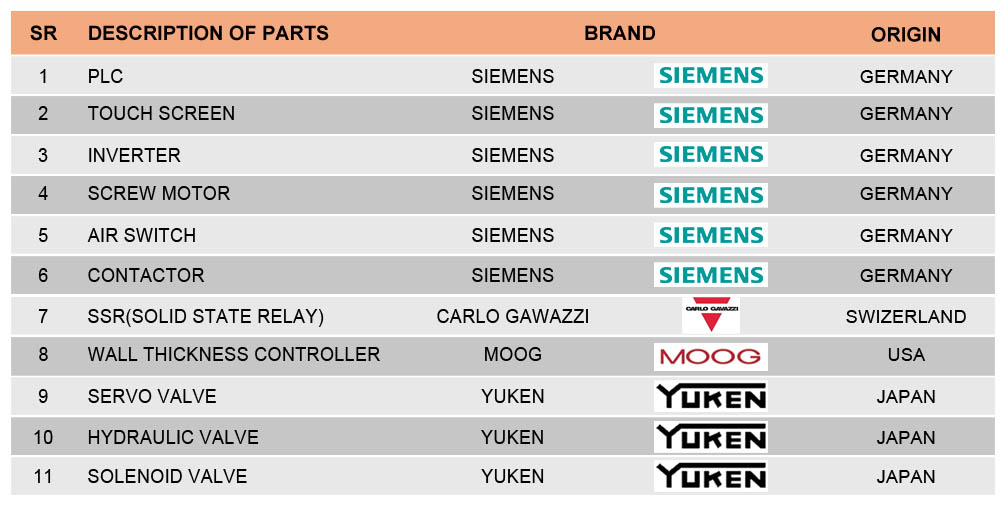

SR Description of Parts Brand Origin
1 PLC SIEMENS Germany
2 Touch Screen SIEMENS Germany
3 Inverter SIEMENS Germany
4 Screw Motor SIEMENS Germany
5 Air Switch SIEMENS Germany
6 Contactor SIEMENS Germany
7 SSR(Solid State Relay) CARLO GAWAZZI Switzerland
8 Wall Thickness Controller MOOG USA
9 Servo Valve YUKEN Japan
10 Hydraulic Valve YUKEN Japan
11 Solenoid Valve YUKEN Japan

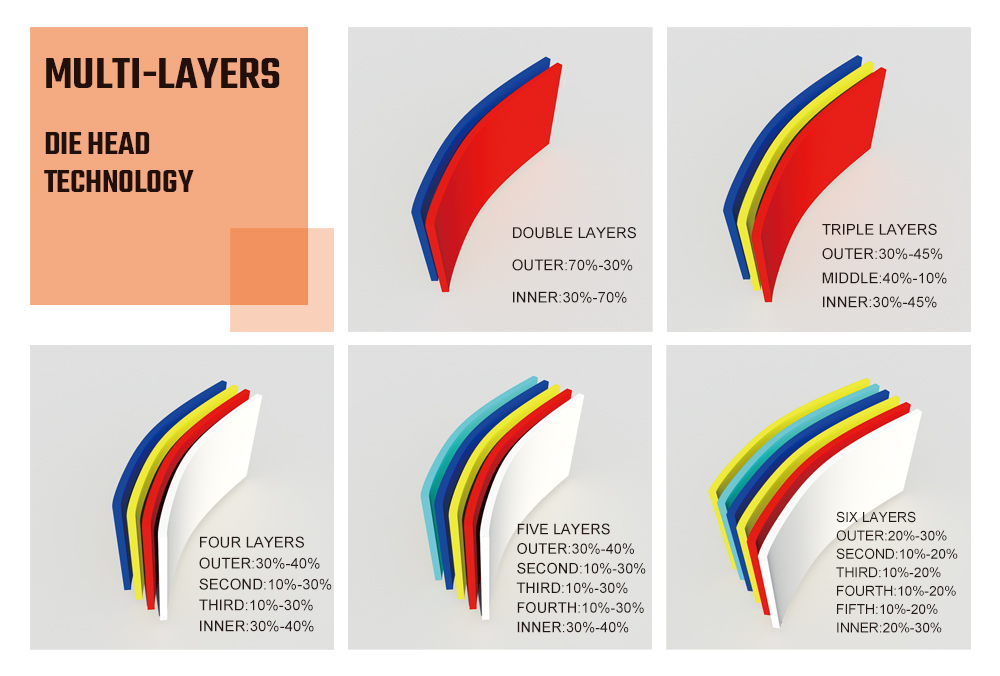

②Multi-layers Die Head Technology

First, multi-layer mold design makes the wall thickness uniform and stable. Second,it can increase production efficiency by 5 times. Finally,the utilization rate of recycled materials increased by 4 times.

yankang blow molding machine die head technology

Customer Service

①Training
The buyer could dispatch their operators to the seller’s factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the buyer, the seller’s technician could train the buyer’s operators in the buyer’s factory in the periods of installing & adjusting;

②Installation & Adjustment
The seller could dispatch an engineer against the requests of the buyer to install and adjust the machines for one week(free of charge) in the buyer’s factory. After one week, if the buyer still needs the training,$100 should be paid for the engineer.
The buyer should make a reservation in advance before the delivery of the machines;
The buyer should pay for the engineer’s food & board while installation in the buyer’s factory. And the buyer should also pay for the air ticket for the engineer.

③Guarantee
The guarantee time is 1 year after the machines normally work in the buyer’s factory if only the problem is caused due to quality control or any reason by the seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.
