Plastic Pallet Blow Molding Machine

plastic pallet blow molding machine

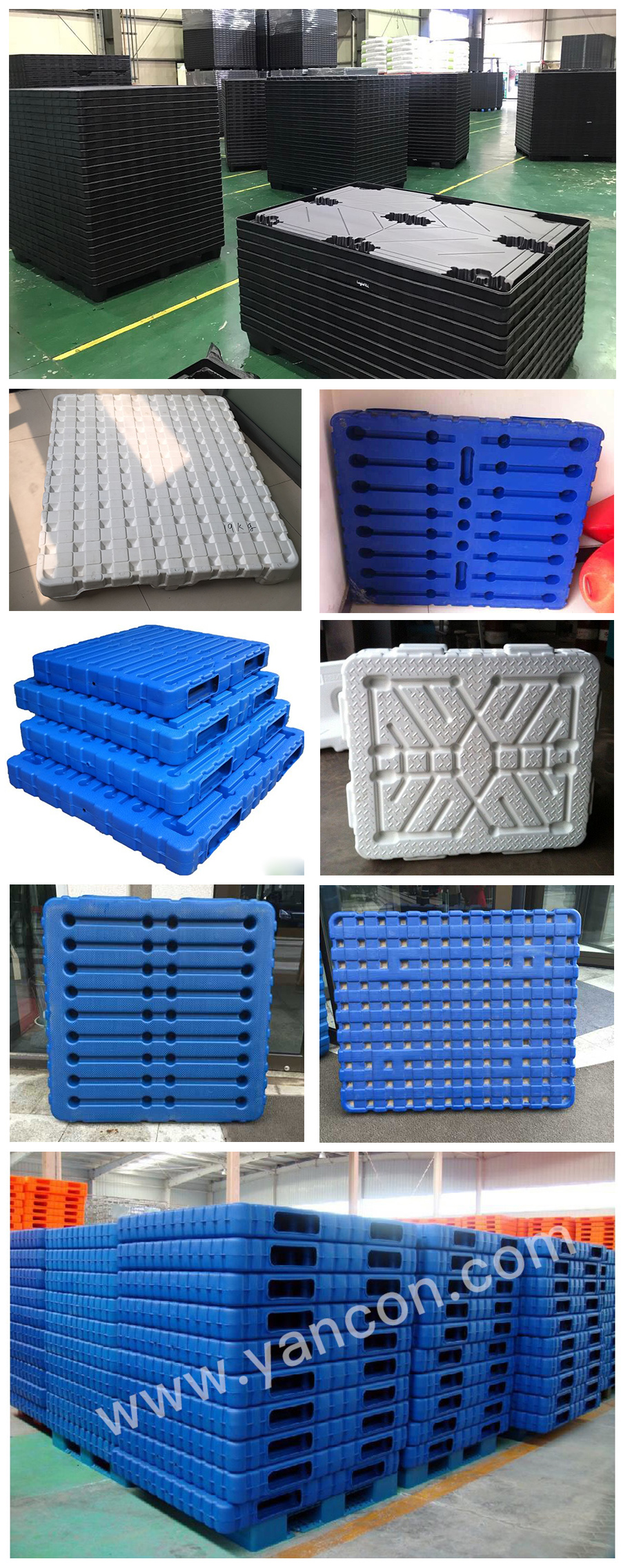

Plastic pallet blow molding machine used to produce different size pallets.

The nested design saves space. The surface adopts anti-skid protection design, safe and reliable. The principle of mechanics is to develop the pallet with uniform force, which greatly reduces the rate of cargo damage. Strictly implement the national standard size, strong versatility.

Plastic Pallet Daily Output:260-400PC
Delivery Date:2-3 Month

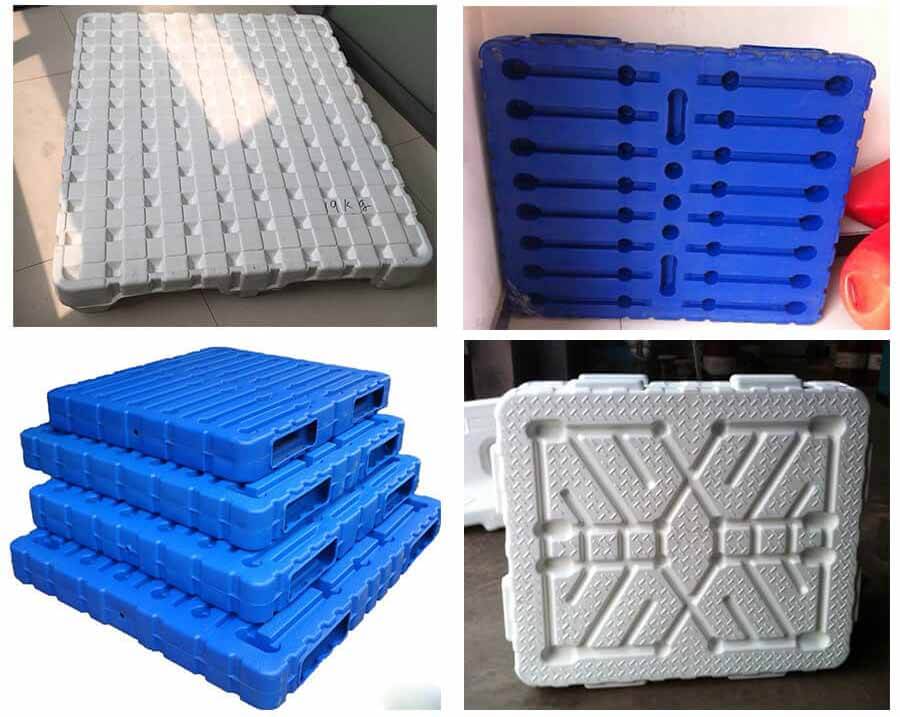

Applications of Plastic Pallet Blow Molding Machine

The tray has the characteristics of high load-bearing performance and long service life. It has a wide range of applications in shopping malls, supermarkets, logistics, and storage. It can be used for flat turnover, warehouse stocking, etc.

Adopt a new integrated multi-layer die head design. from one layer to six layers, support for the production of plastic pallets and road barriers at the same time.

Technical Parameter of Plastic Pallet Blow Molding Machine

Model YK-1500L-1 YK-1500L-2
Pallet Blow Molding Machine One layer Two layers
Max. Product Size 9*4.5*5.2m 9*5*5.2m
Machine Dimension 32ton 36ton
Total Power 200kw 287kw
Average Power Consumption 100kw 130kw
Accumulator Die Head
Accumulator Capacity 45L 33kg 45L 33kg
Heating Load 50kw 60kw
Extrusion System
Screw Diameter 150mm 110/110mm
LD Ratio 30:1 30:1
Extruder Motor Power 20kw 90kw/90kw
Heating Power 30kw 60kw
Plasticizing Capacity 300kg/h 350kg/h
Mold Clamping Unit
Clamping  Platen Size 1600x1700x76mm(customized) 1600x1700x76mm(customized)
Max Mold Size 1200x1800mm 1200x1800mm
Clamping Force 1200KN 1200KN
Hydraulic System
Main Oil Pump Power 36kw 36kw
Small Oil Pump Power 7.5kw 7.5kw
Oil Tank Capacity 1000L 1000L

Configuration of Plastic Pallet Blow Molding Machine

①Leading International Technology

For example:

Use original SIEMENS control systems. Guarantee high quality, safe and stable operation. At the same time, it provides after-sales international services.

For more advanced configurations, please refer to the following figure.

SR Description of Parts Brand Origin
1 PLC SIEMENS Germany
2 Touch Screen SIEMENS Germany
3 Inverter SIEMENS Germany
4 Screw Motor SIEMENS Germany
5 Air Switch SIEMENS Germany
6 Contactor SIEMENS Germany
7 SSR(Solid State Relay) CARLO GAWAZZI Switzerland
8 Wall Thickness Controller MOOG USA
9 Servo Valve YUKEN Japan
10 Hydraulic Valve YUKEN Japan
11 Solenoid Valve YUKEN Japan



②Multi-layers Die Head Technology

First, multi-layer mold design makes the wall thickness uniform and stable. Second,it can increase production efficiency by 5 times. Finally,the utilization rate of recycled materials increased by 4 times.

yankang blow molding machine die head technology

Customer Service

①Training
The buyer could dispatch their operators to the seller’s factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the buyer, the seller’s technician could train the buyer’s operators in the buyer’s factory in the periods of installing & adjusting;

②Installation & Adjustment
The seller could dispatch an engineer against the requests of the buyer to install and adjust the machines for one week(free of charge) in the buyer’s factory. After one week, if the buyer still needs the training,$100 should be paid for the engineer.
The buyer should make a reservation in advance before the delivery of the machines;
The buyer should pay for the engineer’s food & board while installation in the buyer’s factory. And the buyer should also pay for the air ticket for the engineer.

③Guarantee
The guarantee time is 1 year after the machines normally work in the buyer’s factory if only the problem is caused due to quality control or any reason by the seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.
