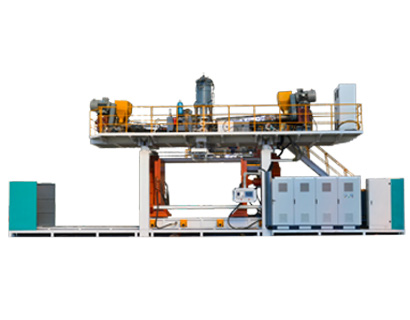

Double Ring Drum Blow Molding Machine
Double ring drum blow molding machine used to produce range from 200L to 1000L chemical tank,the main production is 220L double ring drum,plastic drum,drum,chemical drum,plastic barrels,plastic fuel drum.
For double ring drum blow molding machine ,the six layers blow molding machine have been developed and successfully marketed.
Plastic Drum Daily Output:100-400PC
Delivery Date:2-3 Month

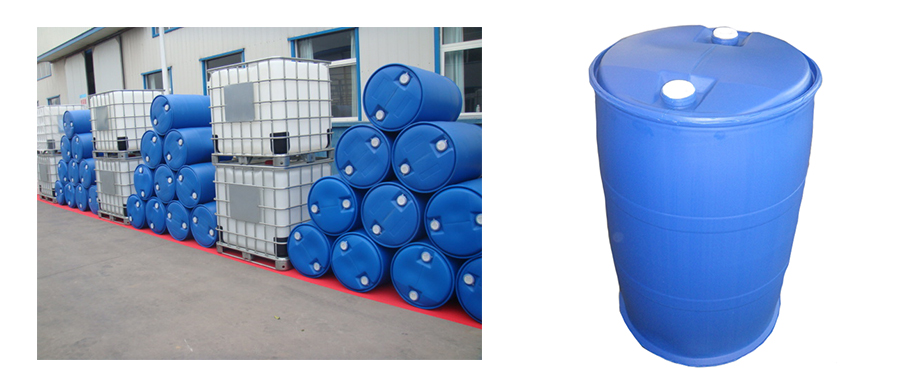

Applications of Double Ring Drum Blow Molding Machine
The double ring drum blow molding machine is a blow molding production equipment specially built by Yankang for the chemical industry. Can be used for packaging and transportation of chemical solutions, petroleum, glue, etc. The equipment can use 1158, 542, TR571, and other PE raw materials.
It is widely used in the packaging of various liquids below Class II dangerous goods. The maximum density of the canned liquid can reach 2.1. The barrel lid is equipped with a high-efficiency pressure-reducing valve, which is safe and reliable to use.
Technical Parameter of Double Ring Drum Blow Molding Machine
| Double Ring Drum Blow Molding Machine | ||
| Model No. | Single Layer | 2 Layers |
| Max. Product Size | 500L | 500L |
| Machine Dimension | 9 m*5m* 5.5 m | 9m*5m*5.5 m |
| Machine Weight | 32ton | 36ton |
| Total Power | 217kw | 360kw |
| Average Power Consumption | 140kw | 234kw |
| Accumulator Die Head | ||
| Accumulator capacity | 20kg | 20kg |
| Heating Load | 30kw | 30kw |
| Extrusion System | ||
| Screw Diameter | 125mm | 90/90mm |
| LD ratio | 32:1 | 32:1 |
| Extruder Motor Power | 132kw | 55kw/55kw |
| Heating Power | 110kw | 110/110kw |
| Plasticizing Capacity | 350kg/h | 260kg/h |
| Mold Clamping Unit | ||
| Clamping Platen Size | 1500*1600*76 mm | 1500*1600*76 mm |
| Max Mold Size | 1200*1500 mm | 1200*1500 mm |
| Clamping Force | 1200kn | 1200kn |
| Hydraulic System | ||
| Main Oil Pump Power | 37kw | 37kw |
| Small Oil Pump Power | 7.5kw | 7.5kw |
| Oil Tank Capacity | 1000L | 1000L |
Configuration of Double Ring Drum Blow Moulding Machine
①Leading International Technology
For example:
Use original SIEMENS control systems. Guarantee high quality, safe and stable operation. At the same time, it provides after-sales international services.
For more advanced configurations, please refer to the following figure.
| SR | Description of Parts | Brand | Origin |
| 1 | PLC | SIEMENS | Germany |
| 2 | Touch Screen | SIEMENS | Germany |
| 3 | Inverter | SIEMENS | Germany |
| 4 | Screw Motor | SIEMENS | Germany |
| 5 | Air Switch | SIEMENS | Germany |
| 6 | Contactor | SIEMENS | Germany |
| 7 | SSR(Solid State Relay) | CARLO GAWAZZI | Switzerland |
| 8 | Wall Thickness Controller | MOOG | USA |
| 9 | Servo Valve | YUKEN | Japan |
| 10 | Hydraulic Valve | YUKEN | Japan |
| 11 | Solenoid Valve | YUKEN | Japan |
First, the multi-layer mold design makes the wall thickness uniform and stable. Second， it can increase production efficiency by 5 times. Finally， the utilization rate of recycled materials increased by 4 times.
Customer Service
①Training
The buyer could dispatch their operators to the seller’s factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the buyer, the seller’s technician could train the buyer’s operators in the buyer’s factory in the periods of installing & adjusting;
②Installation & Adjustment
The seller could dispatch an engineer against the requests of the buyer to install and adjust the machines for one week(free of charge) in the buyer’s factory. After one week, if the buyer still needs the training,$100 should be paid to the engineer.
The buyer should make a reservation in advance before the delivery of the machines;
The buyer should pay for the engineer’s food & board while installation in the buyer’s factory. And the buyer should also pay for the air ticket for the engineer.
③Guarantee
The guarantee time is 1 year after the machines normally work in the buyer’s factory if only the problem is caused due to quality control or any reason by the seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.
