Jerrycan Blow Moulding Machine
Jerrycan blow moulding machine can produce hollow products up to 30L. The equipment can be designed as a storage die head or continuous die head. At the same time, the machine can also be designed as a single station or double station. Different designs have their advantages, which can fully meet the needs of various customers.
Delivery Date:2-3 Month
Technical Parameter of Jerrycan Blow Moulding Machine
Model | 30L | 30L |
Specification | ||
Station | 1 | 2 |
Dry cycle | 600PC/H | 400PC/H*2 |
Output of HDPE | 110KG/H | 230 |
Weight | 12000KG | 18000KG |
Size of Machine(L*W*H) | 4.1*2.2*3.8m | 6.3*3.4*3.9 |
Die Head | ||
Max Die Diameter | 300mm | 190mm |
Die Head Heating Zone | 5 | 5 |
Capacity of Accumulator Head | 4L | |
Die Head Heating Power | 17.7kw | 15 |
Extrusion System | ||
Screw Diameter | 80mm | 100mm |
Screw Length/ Diameter Ratio | 25 L/D | 28 L/D |
Screw Heating Power | 19kw | 26kw |
No.of Screw Heating Zone | 4 | 5 |
Clamping Unit | ||
Platen Distance | 350-780mm | 420-920mm |
Clamping Force | 215KN | 250KN |
Power Unit | ||
Hydraulic Pump Driving Power | 21kw+4 | 21kw+4 |
Screw Motor Power | 30kw | 75kw |
Total power | 91.9kw | 141KW |
Average Power | 45kw | 70kw |
Applications of Jerrycan Blow Moulding Machine

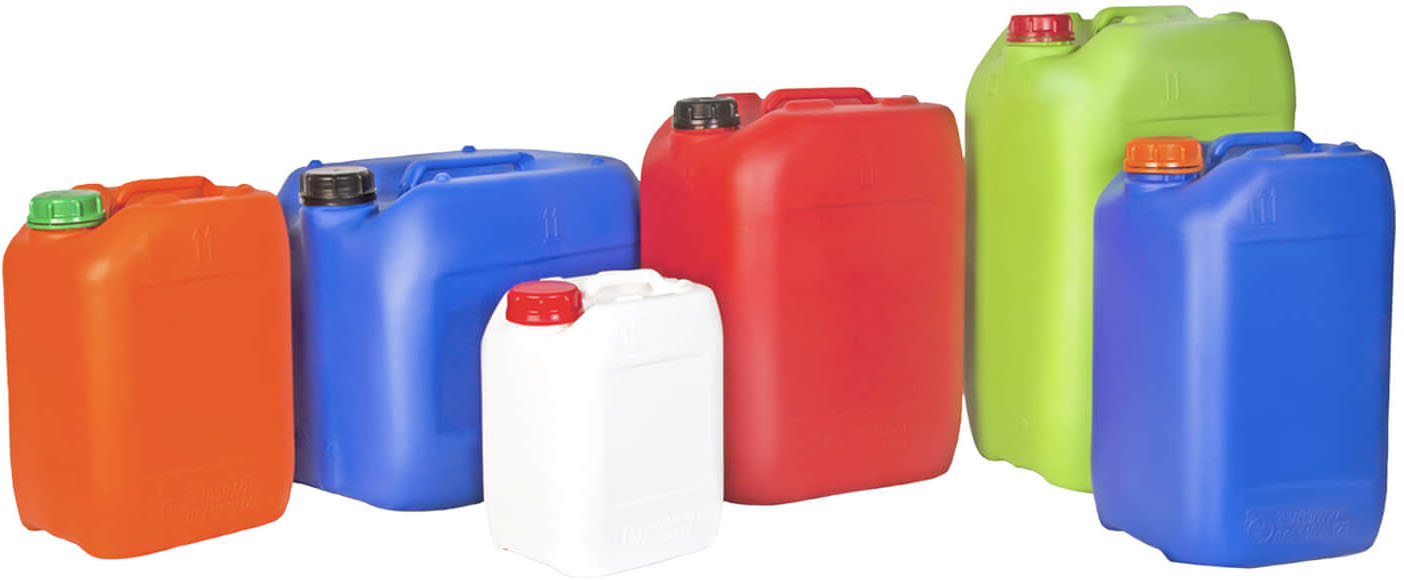

Jerrycan blow molding machine can produce hollow products up to 30L, such as chemical tanks, and jerrycan.
Configuration of Jerrycan Blow Moulding Machine
①Leading International Technology
For example:
Use original SIEMENS control systems. Guarantee high quality, safe and stable operation. At the same time, it provides after-sales international services.
For more advanced configurations, please refer to the following figure.
SR | Description of Parts | Brand | Origin |
1 | PLC | SIEMENS | Germany |
2 | Touch Screen | SIEMENS | Germany |
3 | Inverter | SIEMENS | Germany |
4 | Screw Motor | SIEMENS | Germany |
5 | Air Switch | SIEMENS | Germany |
6 | Contactor | SIEMENS | Germany |
7 | SSR(Solid State Relay) | CARLO GAWAZZI | Switzerland |
8 | Wall Thickness Controller | MOOG | USA |
9 | Servo Valve | YUKEN | Japan |
10 | Hydraulic Valve | YUKEN | Japan |
11 | Solenoid Valve | YUKEN | Japan |
First, the multi-layer mold design makes the wall thickness uniform and stable. Second, it can increase production efficiency by 5 times. Finally, the utilization rate of recycled materials increased by 4 times.
①Training
The buyer could dispatch their operators to the seller’s factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the buyer, the seller’s technician could train the buyer’s operators in the buyer’s factory in the periods of installing & adjusting;
②Installation & Adjustment
The seller could dispatch an engineer against the requests of the buyer to install and adjust the machines for one week(free of charge) in the buyer’s factory. After one week, if the buyer still needs the training,$100 should be paid to the engineer.
The buyer should make a reservation in advance before the delivery of the machines;
The buyer should pay for the engineer’s food & board while installation in the buyer’s factory. And the buyer should also pay for the air ticket for the engineer.
③Guarantee
The guarantee time is 1 year after the machines normally work in the buyer’s factory if only the problem is caused due to quality control or any reason by the seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.
