Kayak 2 Layers Blow Molding Machine

kayak blow molding machine4

Kayak 2 layers blow molding machine is the latest product developed by Yankang Plastics Machinery.

Using domestic new blow molding technology, the product is formed at one time. The product has a thicker wall, reinforced ribs, and strong impact resistance. Resistant to chemicals, easy to wash, not easy to mold. Lightweight, good buoyancy and high safety performance.

Kayak Daily Output:100-300PC
Delivery Date:3-4 Month

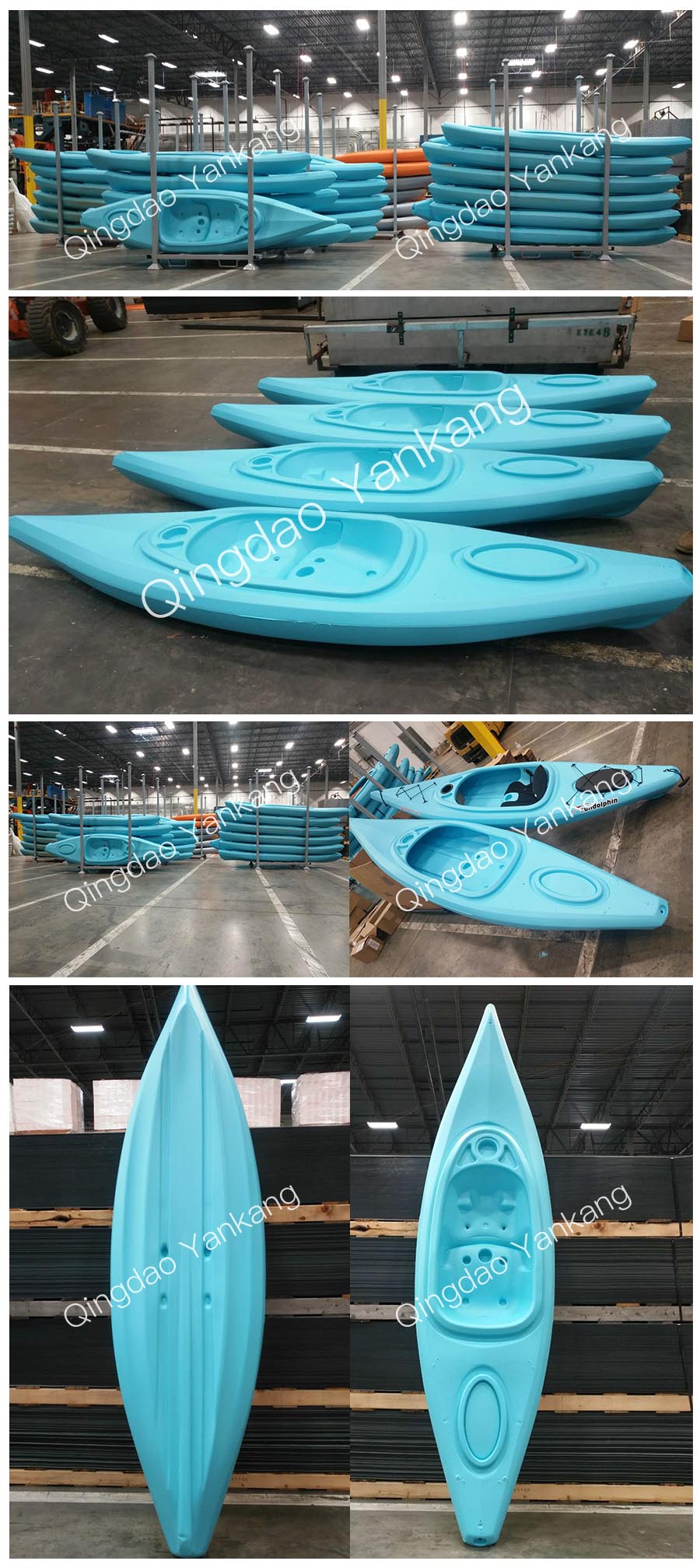

Applications of Kayak Blow Molding Machine

Kayak can be widely used in recreation and entertainment, flood relief, aquaculture, tourism, and other fields.


Technical Parameter of Kayak Blow Molding Machine

Kayak Blow Molding Machine
Specifications 2 layers
Extruders Screw Diameter ∮110/110mm
Motor 90/90kw
Plasticizing Capacity 500 kg/h
L/D L/D 32:1
Max Screw Speed 60 RPM
Die Head Accumulator capacity 80kg
Heating Load 100kw
Clamping Unit Clamping Platen Size 1000x1100mm
Max Mould Size 1800x4200mm
Clamping Force 2200KN
Hydraulic System Hydraulic Drive Motor (Main) 37kw
Hydraulic Drive Motor (Parison Control) 7.5kw
Oil Tank Capacity 800L
Machine Weight 175 Ton
Dimension L x W x H 14mx8.5mx12m
Total Power 430kw
Average Power Consumption 220kw

Configuration of Kayak Blow Molding Machine

①Leading International Technology

For example:

Use original SIEMENS control systems. Guarantee high quality, safe and stable operation. At the same time, it provides after-sales international services.

For more advanced configurations, please refer to the following figure.

SR Description of Parts Brand Origin
2 Touch Screen SIEMENS Germany
3 Inverter SIEMENS Germany
4 Screw Motor SIEMENS Germany
5 Air Switch SIEMENS Germany
6 Contactor SIEMENS Germany
7 SSR(Solid State Relay) CARLO GAWAZZI Switzerland
8 Wall Thickness Controller MOOG USA
9 Servo Valve YUKEN Japan
10 Hydraulic Valve YUKEN Japan
11 Solenoid Valve YUKEN Japan


②Multi-layers Die Head Technology

First, multi-layer mold design makes the wall thickness uniform and stable. Second,it can increase production efficiency by 5 times. Finally,the utilization rate of recycled materials increased by 4 times.

yankang blow molding machine die head technology

Customer Service

The buyer could dispatch their operators to the seller’s factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the buyer, the seller’s technician could train the buyer’s operators in the buyer’s factory in the periods of installing & adjusting;

②Installation & Adjustment
The seller could dispatch an engineer against the requests of the buyer to install and adjust the machines for one week(free of charge) in the buyer’s factory. After one week, if the buyer still needs the training,$100 should be paid for the engineer.
The buyer should make a reservation in advance before the delivery of the machines;
The buyer should pay for the engineer’s food & board while installation in the buyer’s factory. And the buyer should also pay for the air ticket for the engineer.

The guarantee time is 1 year after the machines normally work in the buyer’s factory if only the problem is caused due to quality control or any reason by the seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.v
