Canoe Blow Molding Machine
Kayak can be widely used in recreation and entertainment, flood relief, aquaculture, tourism, and other fields.
Using domestic new blow molding technology, the product is formed at one time. The product has a thicker wall, reinforced ribs, and strong impact resistance. Resistant to chemicals, easy to wash, not easy to mold. Lightweight, good buoyancy, and high safety performance.
Latest Technology

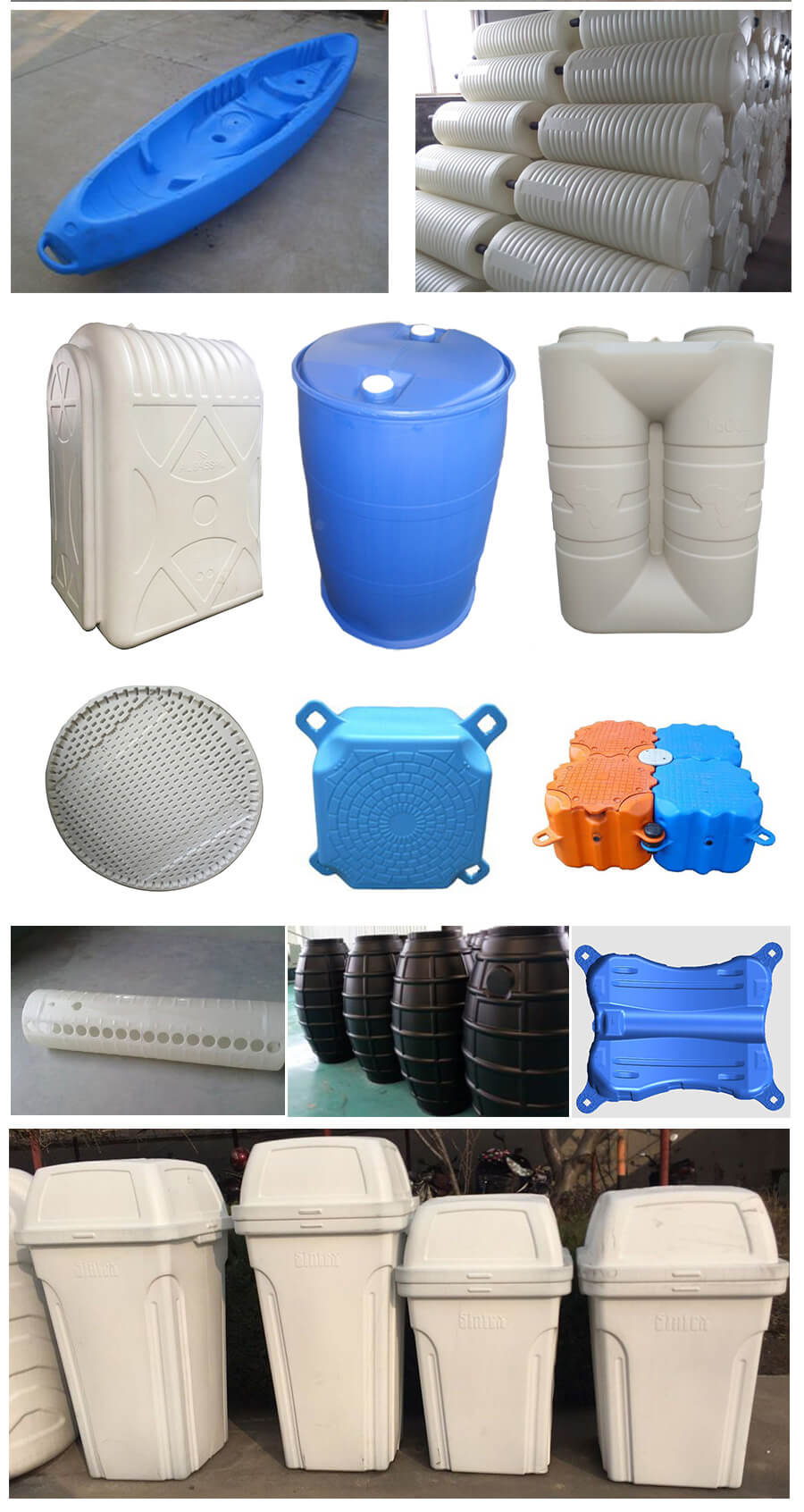

Applications of Canoe Blow Molding Machine
Kayak can be widely used in recreation and entertainment, flood relief, aquaculture, tourism, and other fields.
Using domestic new blow molding technology, the product is formed at one time. The product has a thicker wall, reinforced ribs, and strong impact resistance. Resistant to chemicals, easy to wash, not easy to mold. Lightweight, good buoyancy, and high safety performance.
Configuration of Canoe Blow Molding Machine
①Technical data for YK canoe series
| Canoe Blow Molding Machine | ||
| Specifications | 2 layers | |
| Extruders | Screw Diameter | ∮110/110mm |
| Motor | 90/90kw | |
| Plasticizing Capacity | 500 kg/h | |
| L/D | L/D 32:1 | |
| Max Screw Speed | 60 RPM | |
| Die Head | Accumulator capacity | 80kg |
| Heating Load | 100kw | |
| Clamping Unit | Clamping Platen Size | 1000x1100mm |
| Max Mould Size | 1800x4200mm | |
| Clamping Force | 2200KN | |
| Hydraulic System | Hydraulic Drive Motor (Main) | 37kw |
| Hydraulic Drive Motor (Parison Control) | 7.5kw | |
| Oil Tank Capacity | 800L | |
| Machine Weight | 175 Ton | |
| Dimension | L x W x H | 14mx8.5mx12m |
| Total Power | 430kw | |
| Average Power Consumption | 220kw | |
For example:
Use original SIEMENS control systems. Guarantee high quality, safe and stable operation. At the same time, it provides after-sales international services.
For more advanced configurations, please refer to the following figure.
| SR | Description of Parts | Brand | Origin |
| 1 | PLC | SIEMENS | Germany |
| 2 | Touch Screen | SIEMENS | Germany |
| 3 | Inverter | SIEMENS | Germany |
| 4 | Screw Motor | SIEMENS | Germany |
| 5 | Air Switch | SIEMENS | Germany |
| 6 | Contactor | SIEMENS | Germany |
| 7 | SSR(Solid State Relay) | CARLO GAWAZZI | Switzerland |
| 8 | Wall Thickness Controller | MOOG | USA |
| 9 | Servo Valve | YUKEN | Japan |
| 10 | Hydraulic Valve | YUKEN | Japan |
| 11 | Solenoid Valve | YUKEN | Japan |
③Multi-layers Die Head Technology
First, the multi-layer mold design makes the wall thickness uniform and stable. Second, it can increase production efficiency by 5 times. Finally, the utilization rate of recycled materials increased by 4 times.
Customer Service
①Training
The buyer could dispatch their operators to the seller’s factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the buyer, the seller’s technician could train the buyer’s operators in the buyer’s factory in the periods of installing & adjusting;
②Installation & Adjustment
The seller could dispatch an engineer against the requests of the buyer to install and adjust the machines for one week(free of charge) in the buyer’s factory. After one week, if the buyer still needs the training,$100 should be paid for the engineer.
The buyer should make a reservation in advance before the delivery of the machines;
The buyer should pay for the engineer’s food & board while installation in the buyer’s factory. And the buyer should also pay for the air ticket for the engineer.
③Guarantee
The guarantee time is 1 year after the machines normally work in the buyer’s factory if only the problem is caused due to quality control or any reason by the seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.
