5000L Water Tank Blow Making Machine
The 5000L water tank blow making machine can be used to produce water tank from 1000L to 5000L in 1-6 layers.
Water Tank Daily Output : 96-120PC
Delivery Date: 4-5 Month
| Commodity | Output | Unit | Weight | Unit |
| 1000L Tank | 10-12 | PC/H | 16-20 | KG |
| 1500L Tank | 9-11 | PC/H | 20-30 | KG |
| 2000L Tank | 8-9 | PC/H | 30-40 | KG |
| 3000L Tank | 5-6 | PC/H | 50-60 | KG |
| 5000L Tank | 3-4 | PC/H | 70-85 | KG |
Applications of 5000L Water Tank Blow Molding Machine
The 5000L water tank blow molding machine can be used to produce water tank from 1000L to 5000L in 1-6 layers.
Technical Parameter of 5000L Water Tank Blow Molding Machine
5000L water tank blow molding machine can use 1000L, 1500L, 2000L, 3000L, and 5000L blow molds.
Can be used for production:1000L tank 10-12 PC/H, 1500L tank 9-12 PC/H, 2000L tank 8-9 PC/H, 3000L tank 5-6 PC/H and 5000L tank 3-4 PC/H.

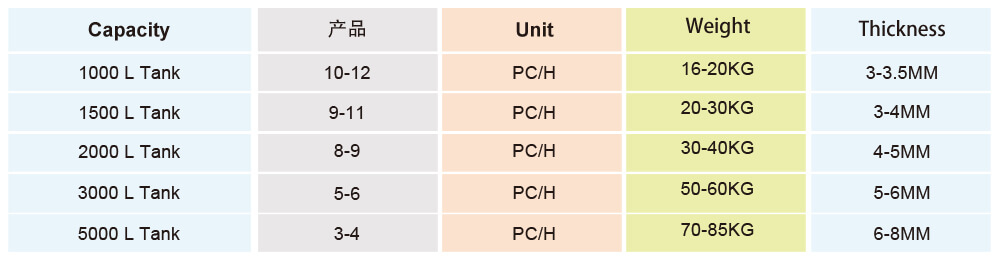

For more production details:
| Capacity | Product | Unit | Weight | Thickness |
| 1000L Tank | 10-12 | PC/H | 16-20KG | 3-3.5mm |
| 1500L Tank | 9-11 | PC/H | 20-30KG | 3-4mm |
| 2000L Tank | 8-9 | PC/H | 30-40KG | 4-5mm |
| 3000L Tank | 5-6 | PC/H | 50-60KG | 5-6mm |
| 5000L Tank | 3-4 | PC/H | 70-85KG | 6-8mm |

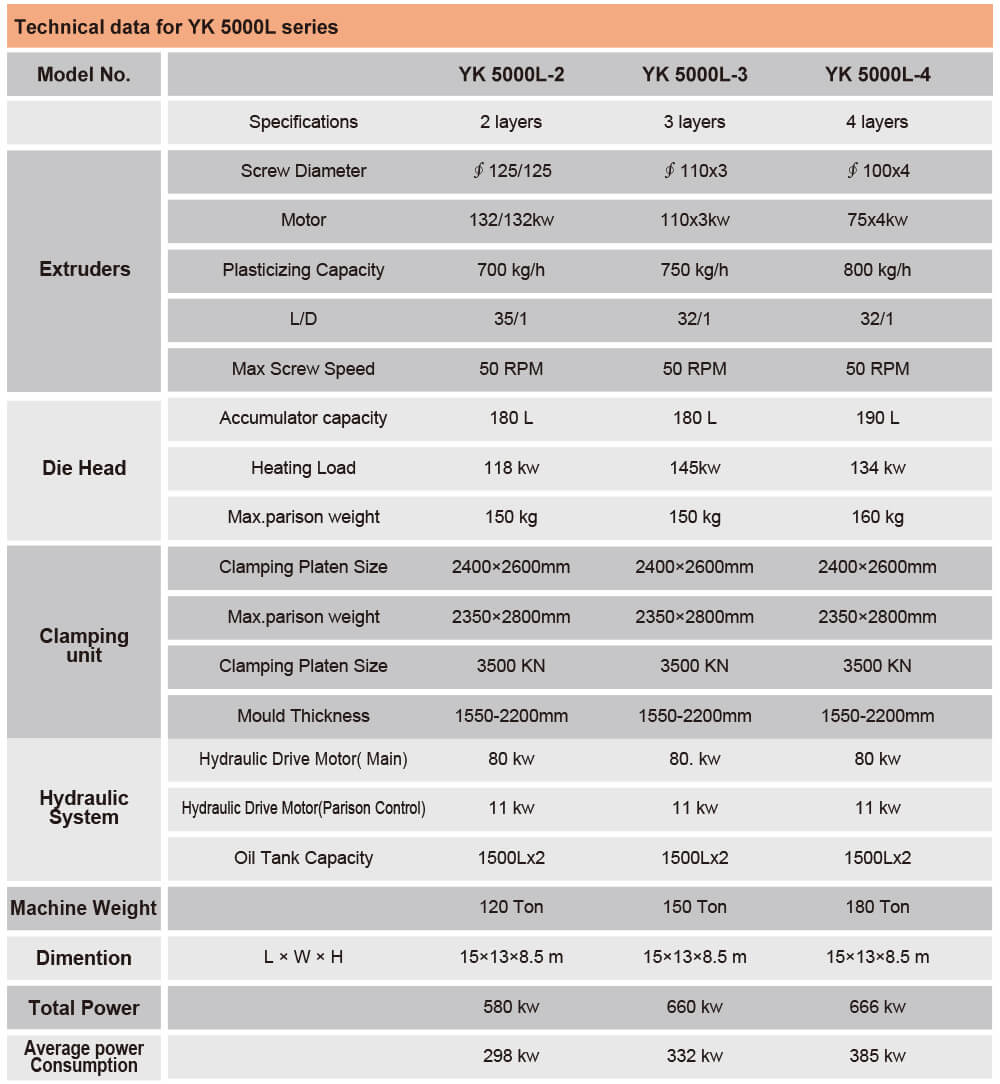

Technical data for YK 5000L series
In the table below, the data of the blow molding machine of YK 5000L-2 layers, YK 5000L-3 layers, and YK 5000L-4 layers are listed.
layers are listed.
| Technical Data for YK 5000L Series | ||||||
| Model No. | YK 5000L-2 | YK 5000L-3 | YK 5000L-4 | |||
| Specifications | 3 layers | 3 layers | 4 layers | |||
| Extruders | Screw Diameter | ∮125/125 | ∮110*3 | ∮100*4 | ||
| Motor | 132/132kw | 110*3kw | 75*4kw | |||
| Plasticizing Capacity | 700kg/h | 750kg/h | 800kg/h | |||
| L/D | 35/1 | 32/1 | 32/1 | |||
| Max Screw Speed | 50RPM | 50RPM | 50RPM | |||
| Die Head | Accumulator Capacity | 180L | 180L | 190L | ||
| Heating Load | 118kw | 125kw | 134kw | |||
| Max. Parison Weight | 150kg | 150kg | 160kg | |||
| Clamping Unit | Clamping Platen Size | 2400*2600mm | 2400*2600mm | 2400*2600mm | ||
| Max Mould Size | 2350*2800mm | 2350*2800mm | 2350*2800mm | |||
| Clamping Force | 3500 KN | 3500 KN | 3500 KN | |||
| Mould Thickness | 1550-2200mm | 1550-2200mm | 1550-2200mm | |||
| Hydraulic System | Hydraulic Drive Motor (Main) | 80kw | 80kw | 80kw | ||
| Hydraulic Drive Motor (Parison Control) | 11kw | 11kw | 11kw | |||
| Oil Tank Capacity | 1500L*2 | 1500L*2 | 1500L*2 | |||
| Machine Weight | 120 Ton | 150 Ton | 180 Ton | |||
| Dimension | L x W x H | 15m*13m*8.5m | 15m*13m*8.5m | 15m*13m*8.5m | ||
| Total Power | 580kw | 660kw | 666kw | |||
| Average Power Consumption | 298kw | 332kw | 385kw | |||
Configuration of 5000L Water Tank Blow Molding Machine
For example:
Use original SIEMENS control systems. Guarantee high quality, safe and stable operation. At the same time, it provides after-sales international services.
For more advanced configurations, please refer to the following figure.
| SR | Description of Parts | Brand | Origin |
| 1 | PLC | SIEMENS | Germany |
| 2 | Touch Screen | SIEMENS | Germany |
| 3 | Inverter | SIEMENS | Germany |
| 4 | Screw Motor | SIEMENS | Germany |
| 5 | Air Switch | SIEMENS | Germany |
| 6 | Contactor | SIEMENS | Germany |
| 7 | SSR(Solid State Relay) | CARLO GAWAZZI | Switzerland |
| 8 | Wall Thickness Controller | MOOG | USA |
| 9 | Servo Valve | YUKEN | Japan |
| 10 | Hydraulic Valve | YUKEN | Japan |
| 11 | Solenoid Valve | YUKEN | Japan |
②Multi-layers Die Head Technology
First, multi-layer mold design makes the wall thickness uniform and stable. Second，it can increase production efficiency by 5 times. Finally，the utilization rate of recycled materials increased by 4 times.
Customer Service
①Training
The buyer could dispatch their operators to the seller’s factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the buyer, the seller’s technician could train the buyer’s operators in the buyer’s factory in the periods of installing & adjusting;
②Installation & Adjustment
The seller could dispatch an engineer against the requests of the buyer to install and adjust the machines for one week(free of charge) in the buyer’s factory. After one week, if the buyer still needs the training,$100 should be paid for the engineer.
The buyer should make a reservation in advance before the delivery of the machines;
The buyer should pay for the engineer’s food & board while installation in the buyer’s factory. And the buyer should also pay for the air ticket for the engineer.
③Guarantee
The guarantee time is 1 year after the machines normally work in the buyer’s factory if only the problem is caused due to quality control or any reason by the seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.
