500L Water Tank Blow Molding Machine
The 500L water tank blow molding machine can produce 200L to 500L water tanks.
Can be used to produce 1-6 layers water tanks, up to 10 layers.
Water Tank Daily Output : 240-300PC
Delivery Date: 1-2 Month
Capacity |
Output | Unit | Weight | Unit |
200L Tank |
18-20 |
PC/H | 3-4.5 |
KG |
300L Tank |
18-20 | PC/H | 4-5 |
KG |
500L Tank | 16-18 | PC/H | 6-10 |
KG |
Applications of 500L Water Tank Blow Molding Machine
The 500L water tank blow molding machine can produce 200L to 500L water tanks.
Technical Parameter of 500L Water Tank Blow Molding Machine
Output For Each Capacity
500L water tank blow molding machine can use 200L, 300L, and 500L blow molds.
Can be used for production:200L-300L tank 18-20 PC/H,500L tank 16-18 PC/H.

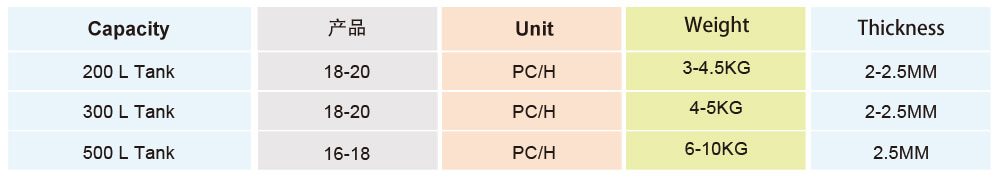

For more production details:
Capacity | Product | Unit | Weight | Thickness |
200L Tank | 18-20 | PC/H | 3-4.5KG | 2-2.5mm |
300L Tank | 18-20 | PC/H | 4-5KG | 2-2.5mm |
500L Tank | 16-18 | PC/H | 6-10KG | 2.5mm |

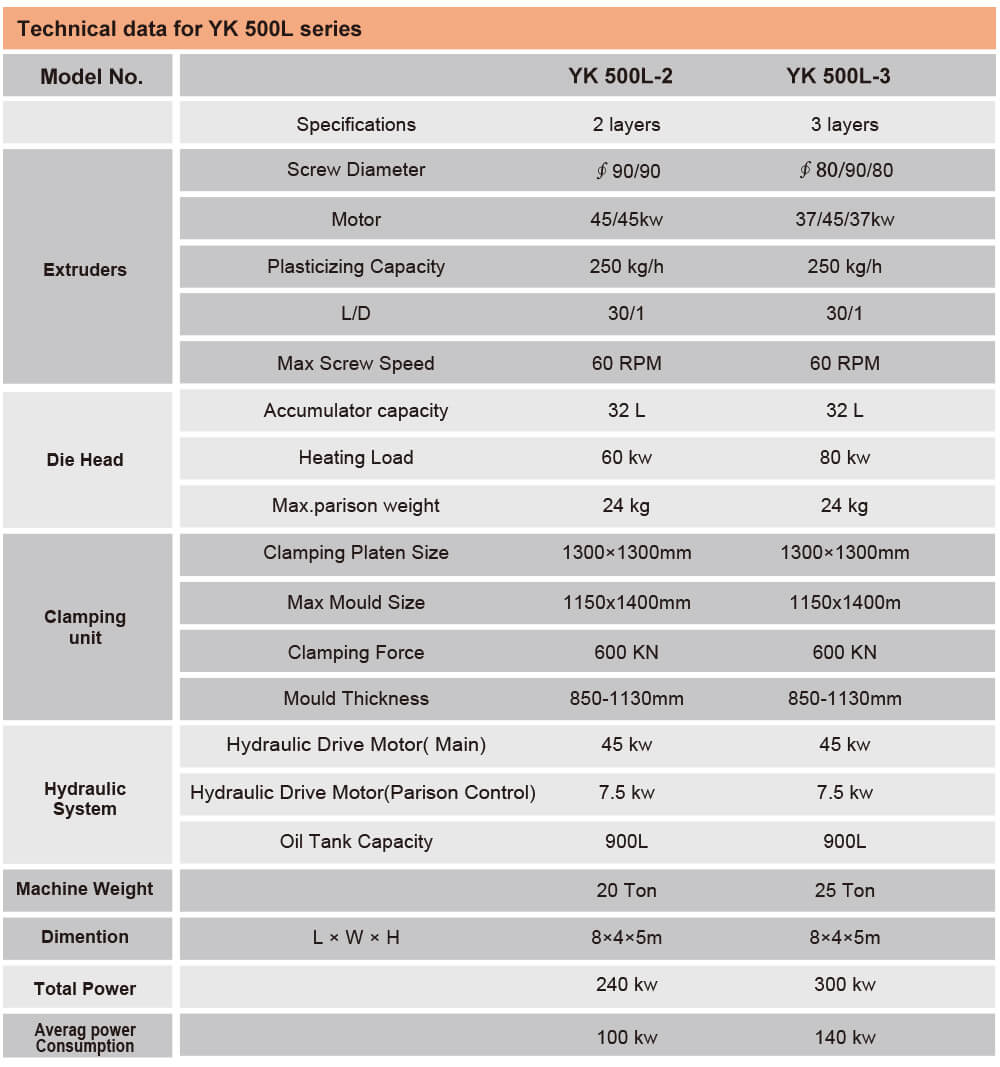

Technical data for YK 500L series
In the table below, the data of the blow molding machine of YK 500L-2 layers and YK 500L-3 layers are listed.
Technical Data for YK 500L Series | |||
Model No. | YK 500L-2 | YK 500L-3 | |
Specifications | 2 layers | 3 layers | |
Extruders | Screw Diameter | ∮90/90 | ∮80/90/80 |
Motor | 45/45kw | 37/45/37kw | |
Plasticizing Capacity | 250 kg/h | 250 kg/h | |
L/D | 30/1 | 30/1 | |
Max Screw Speed | 60 RPM | 60 RPM | |
Die Head | Accumulator capacity | 32L | 32L |
Heating Load | 60kw | 80kw | |
Max. parison weight | 24 kg | 24 kg | |
Clamping Unit | Clamping Platen Size | 1300x1300mm | 1300X1300mm |
Max Mould Size | 1150x1400mm | 1150X1400mm | |
Clamping Force | 600 KN | 600 KN | |
Mould Thickness | 850-1150mm | 850-1130mm | |
Hydraulic System | Hydraulic Drive Motor (Main) | 45kw | 45kw |
Hydraulic Drive Motor (Parison Control) | 7.5kw | 7.5kw | |
Oil Tank Capacity | 900L | 900L | |
Machine Weight | 20 Ton | 45 Ton | |
Dimension | L x W x H | 8m*4m*5.2m | 8m*4m*5m |
Total Power | 240kw | 300kw | |
Average Power Consumption | 100kw | 140kw |
Configuration of 500L Water Tank Blow Molding Machine
For example:
Use original SIEMENS control systems. Guarantee high quality, safe and stable operation. At the same time, it provides after-sales international services.
For more advanced configurations, please refer to the following figure.
SR | Description of Parts | Brand | Origin |
1 | PLC | SIEMENS | Germany |
2 | Touch Screen | SIEMENS | Germany |
3 | Inverter | SIEMENS | Germany |
4 | Screw Motor | SIEMENS | Germany |
5 | Air Switch | SIEMENS | Germany |
6 | Contactor | SIEMENS | Germany |
7 | SSR(Solid State Relay) | CARLO GAWAZZI | Switzerland |
8 | Wall Thickness Controller | MOOG | USA |
9 | Servo Valve | YUKEN | Japan |
10 | Hydraulic Valve | YUKEN | Japan |
11 | Solenoid Valve | YUKEN | Japan |
First, multi-layer mold design makes the wall thickness uniform and stable. Second,it can increase production efficiency by 5 times. Finally,the utilization rate of recycled materials increased by 4 times.
Customer Service
①Training
The buyer could dispatch their operators to the seller’s factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the buyer, the seller’s technician could train the buyer’s operators in the buyer’s factory in the periods of installing & adjusting;
②Installation & Adjustment
The seller could dispatch an engineer against the requests of the buyer to install and adjust the machines for one week(free of charge) in the buyer’s factory. After one week, if the buyer still needs the training,$100 should be paid for the engineer.
The buyer should make a reservation in advance before the delivery of the machines;
The buyer should pay for the engineer’s food & board while installation in the buyer’s factory. And the buyer should also pay for the air ticket for the engineer.
③Guarantee
The guarantee time is 1 year after the machines normally work in the buyer’s factory if only the problem is caused due to quality control or any reason by the seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.
